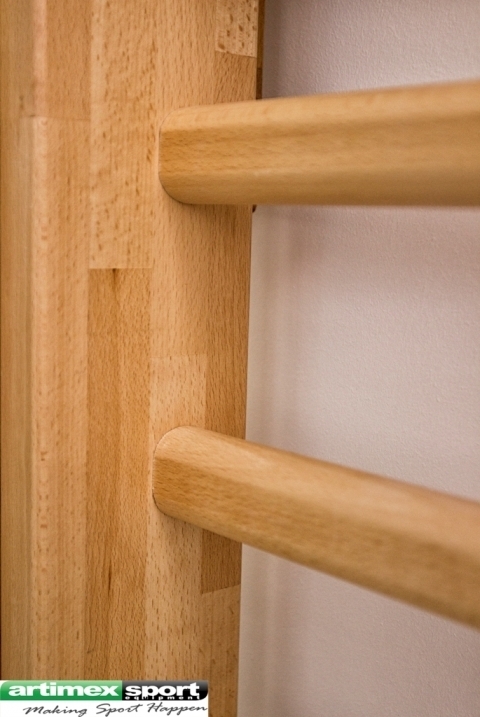

Artimex Sport Home Wall bars from beech wood have 2 stringers (see video) made from beech join timber. Oval rungs (see video), 16 pieces, made from beech timber wood, and have 40x30 mm (round rungs ø 36 mm on request, no additional charge).
The mounting of bars to both sides of the product is performed by using wood screws on the back side.
All rungs in line, except the first on the top.
The four metal angle brackets can be attached either to the inside or to the outside part of the side bars of the wall bar system. Please see the fixing points on stringer for the 4 metal brackets.
The Swedish ladder can also be installed in rooms with skirting boards, using 5 cm thick wooden spacers. Upon request, we deliver thicker spacers, at no extra charge.
Upon request, the wall bars could be delivered with two wood slats(mounting boards) 33 mm thick. No additional charge. You need to mention it in case of an order.
Installation hardware included.
Exercise@fitness.
Weight capacity 150 kg (it mean that every single horizontal rod can support this weight). Weight test resistance - 160 kg
15 years warranty and 30 days money back guarantee.
Dimensions: 230 x 85 cm (other dimensions on request).
Dimension unassembled: 230 x 15 x 15 cm.
Weight 26 kg.
Comply with DIN EN 1234.
See drawing.
Shipped unassembled. Easy to assemble.
See assembly instruction (video
).
Stall bars can be installed on stud framing with the supplied slats. Drilling for proper framing location is required.
Suggestions before buying.
All wood products are lacquered with environmentally friendly water-based lacquers.
FAQ
Code 221-F-REHA
See exercises on the wall bars Video 1, Video 2, Video 3
How the Wall Bars are made?
FREE UK & IRELAND SHIPPING. For any ofher country in the world please send us a request.
